Dual Extruder Cable Line | Fast PVC Insulation Extrusion Process
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Wirecan |
| Certificering: | ISO |
| Modelnummer: | 75+30 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Verpakking Details: | Plastic film+wooden doos |
| Levertijd: | de 30 werkendag |
| Betalingscondities: | T/T |
|
Gedetailleerde informatie |
|||
| Gebruik: | ronde en platte elektrische kabel | productiviteit: | 30 meter per minuut |
|---|---|---|---|
| Grondstof: | Lichtstrook | Voeding: | 28 kW |
| Type: | machine voor het maken van kabels | Toepasselijke industrieën: | Fabrieken |
| Stroom: | 5kW | Definitieve productie: | de draad |
| Draaddiameter: | 0.5 mm2 - 6 mm2, minder dan 10 mm2 | De rollingssnelheid: | 780 RPM max. |
| Productiecapaciteit: | 100m/min | Lokale servicelocatie: | Zuid-Afrika |
| Gebruik: | Kronkelend | Na garantieservice: | Videotechnische ondersteuning |
| Afgewerkte draaddiameter: | 1.0-12 mm | ||
Productomschrijving
The 70+35 High-Speed Cable Extruder Line is designed for the precise extrusion of various wire and cable insulation materials such as PVC, PE, LSZH, and other thermoplastics.
It is widely used for producing electrical wires, communication cables, and power cables with stable performance, smooth surface finish, and excellent concentricity.

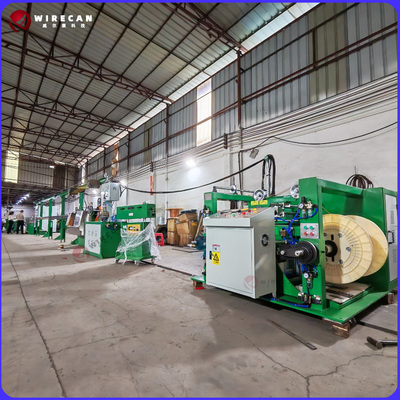

This production line consists of a main extruder (Φ70mm) and a secondary extruder (Φ35mm), which can be used for single-layer or dual-layer insulation extrusion, providing flexibility for different cable structures.
Main Features
-
High-speed and energy-efficient extrusion with advanced temperature control.
-

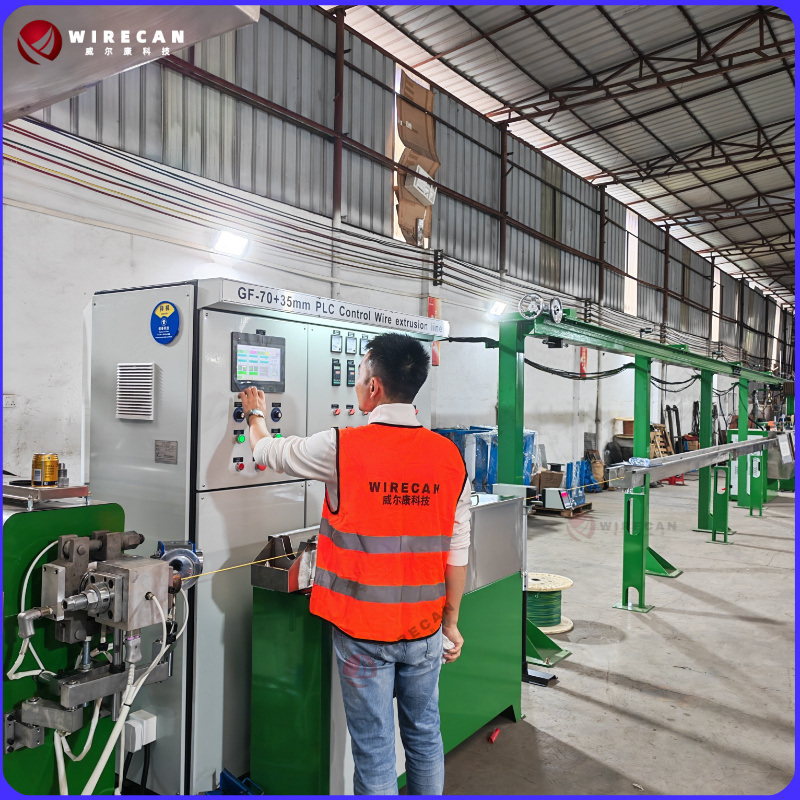

SIEMENS PLC system with a user-friendly touch screen interface for precise control.
-
Dual extruder design (70+35) for color skin or co-extrusion applications.
-

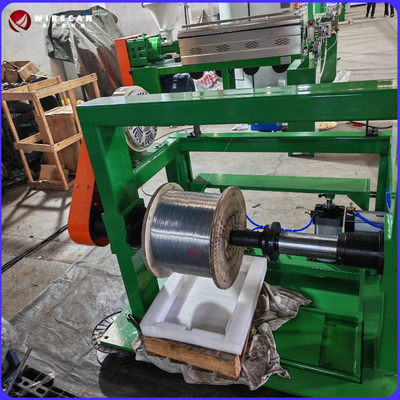

High-precision caterpillar and take-up system ensures stable wire tension and diameter.
-
Automatic meter counting, speed synchronization, and fault alarm functions.
-
Suitable for PVC, PE, LSZH, TPU, and other insulation materials.
-
Compact structure and modular design for easy maintenance and quick operation.
Technical Specifications
| Item | Specification |
|---|---|
| Main Extruder | Φ70 mm |
| Co-Extruder | Φ35 mm |
| Applicable Materials | PVC, PE, LSZH, TPU |
| Line Speed | Up to 300 m/min |
| Wire Diameter Range | 0.5–10 mm |
| Power Supply | AC 380V ±10%, 50Hz |
| Total Power | Approx. 55 kW |
| Control System | SIEMENS PLC + Touch Screen |
| Cooling Type | Water Cooling System |

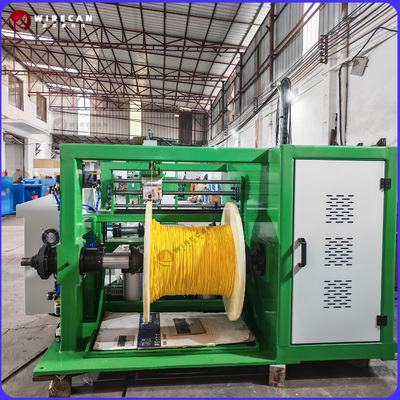

| Take-up Type | Automatic Dual Spool Take-up |
Advantages
-
High-quality components from international brands ensure reliability.
-
Energy-saving screw design for high plasticizing efficiency.
-
Perfect roundness and insulation uniformity of finished cables.
-
OEM customization available for different cable specifications.
-
Comprehensive after-sales support, including installation, commissioning, and training.
Applications
-
Power cable insulation extrusion
-
Communication and data cable production
-
Building wire manufacturing
-
Flexible cable and automotive wire insulation
